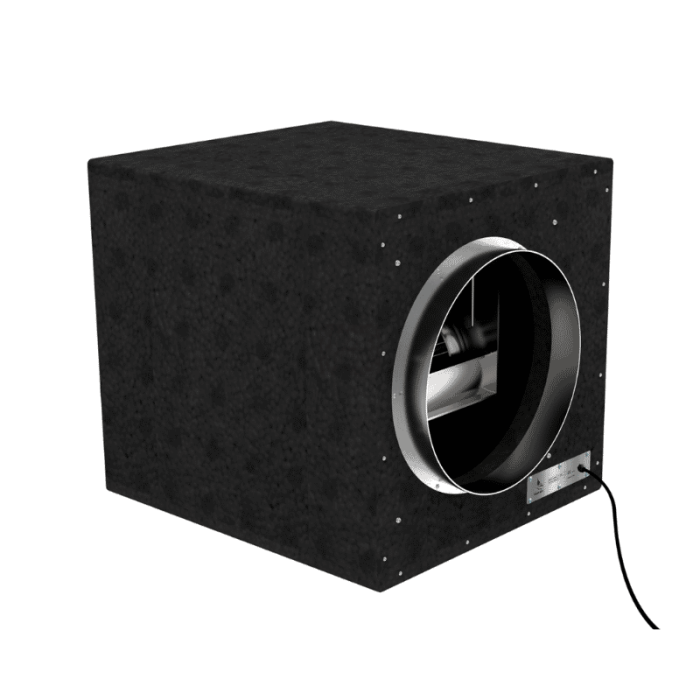

Cyclone FOAM Extraction Box

Cyclone FOAM Extraction Box solves the biggest problem with a powerful extractor: noise. It encloses the motor in a casing made of expanded polypropylene foam (EPP) that dampens sound and vibrations, reducing noise levels by up to 50% without sacrificing performance.

Features of Cyclone FOAM Extraction Box

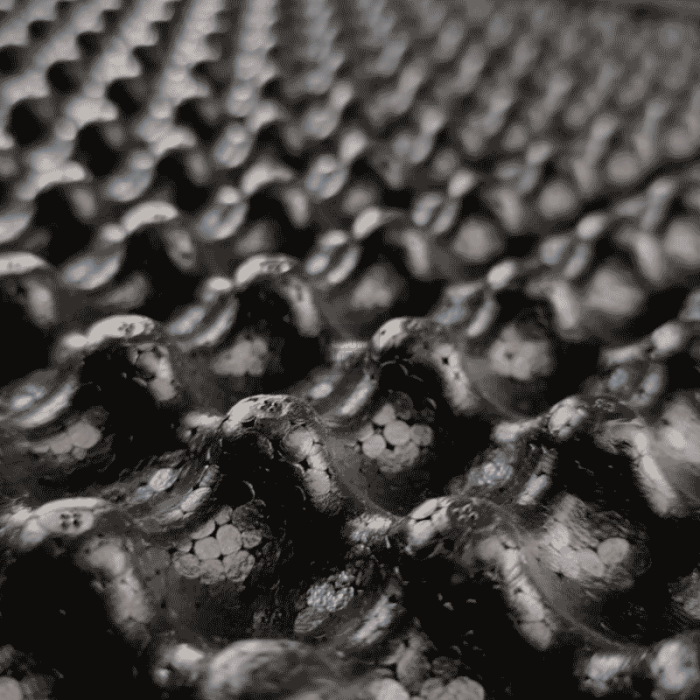

The casing made of high-density EPP combines lightweight and strength, making it much easier to handle and install compared to wooden or MDF boxes. This same material is what absorbs noise from the motor and air flow.

Its most distinctive feature is the inlet and outlet ports positioned at 90° on adjacent faces, rather than facing each other. In addition to increasing air flow by up to 15% compared to a traditional box, it allows you to reduce elbows and bends in the duct, with the resulting lower pressure drop.

It is suitable for indoor cultivation, greenhouses and any space that requires silent ventilation. It is one of our air extractors, designed to be combined with a carbon filter.

Technical Specifications for Cyclone FOAM Extraction Box

• Manufacturer: Cyclone
• Model: FOAM Extraction Box
• Material: High-density expanded polypropylene foam (EPP)
• Noise reduction: Up to 50%
• Air flow increase: Up to 15% (ports at 90°)
• Use: Indoor cultivation, greenhouses and silent ventilation
• Available flow rate: 2500 m³/h
• Inlet and outlet port: 250 mm (2500 m³/h variant)
• Dimensions: 56.5 × 56.5 × 63.1 cm (2500 m³/h variant)
